50KW Solar System with Centrifugal Pump

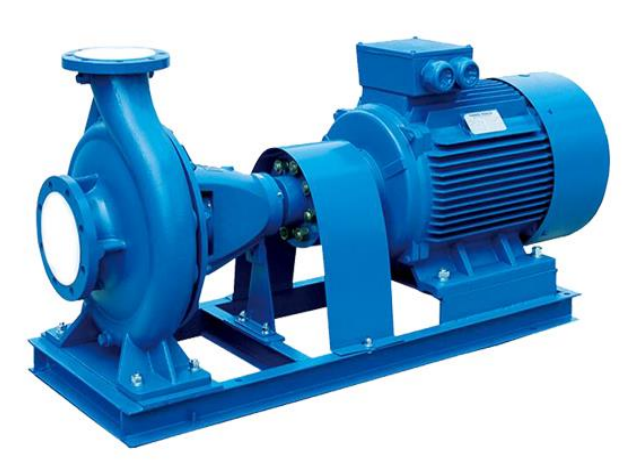

50KW Solar System with DA&DAZ series centrifugal pump is specialized in pumping water, liquid, chemical substances, etc. With compact structure, its working diameter ranges from 50mm to 300mm, each model of our product has 4-5 impellers with different sizes, the rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in farmland irrigation, fire water supply, urban drainage, cooling water circulation for air conditioner, sewage treatment and other fields.
Features:
- Maximum pump head:Up to 160m
- Maximum flow: 100-1600M3/HR
100KW solar power system is a photovoltaic (PV) energy generation system that produces 100 kilowatts (kW) of electricity using solar panels. It is ideal for medium to large-scale commercial or industrial applications, providing significant energy cost savings and reducing carbon emissions. The output of a 100KW solar power system can vary depending on the location and weather conditions, but on average, it can generate around 400-450 kWh of electricity per day, enough to power up to 60 households.
50kw Solar System With Battery
Application: Large-Scale Commercial Or Industrial Applications
100kw high power
hybrid inverter
400-450 kWh per day
Off-grid
| Item | Model | Description | |
| 1 | N-type Mono 580W solar panel | Size:220x113x3.5cm Weight:28KG | 60PCS |
| 2 | Hybrid inverter | Output Voltage: 400V Hz:50-60HZ | 2PC |
| 3 | Monitoring system | Web Box | 1PCS |
| 4 | PV Combiner box | 10 input 1 output | 2PCS |
| 5 | LifePO4 battery | 768V 280ah | 1PCS |
| 6 | Mounting Structure | On the roof or on ground | 1SET |
| 7 | PV Cables | 4mm2 PV cables | 300M |
| 8 | PV connector | Rated Voltage:1000V | 100PAIRS |
Technical Parameters
| Maximum diameter of pump | Up to 300mm |
| Maximum size of impeller | 525mm |
| Maximum flow | Up to 1600m3/h |
| Maximum pump head | Up to 160m |
| Maximum temperature of liquid | 105 ℃ |
| Rotation speed | 2900/1450/3500/1750 r/min |
| Seal type | Packing or mechanical seal |
| Lowest temperature of liquid | -10 ℃ |
| Standard | DIN24255; BS EN733 |
| Maximum working pressure | 2.5MPA |

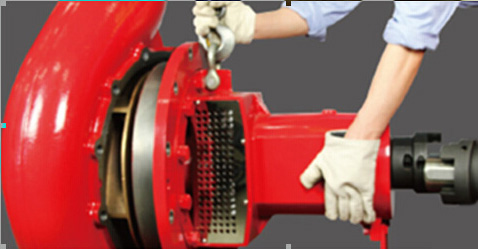

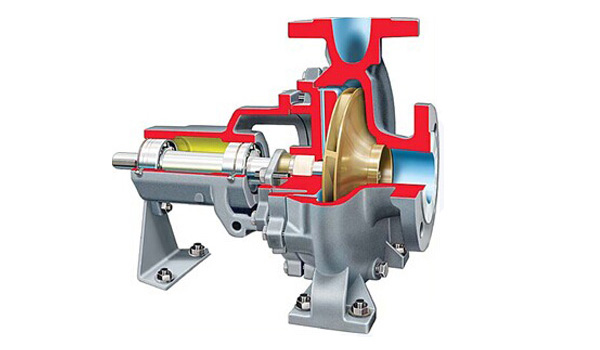

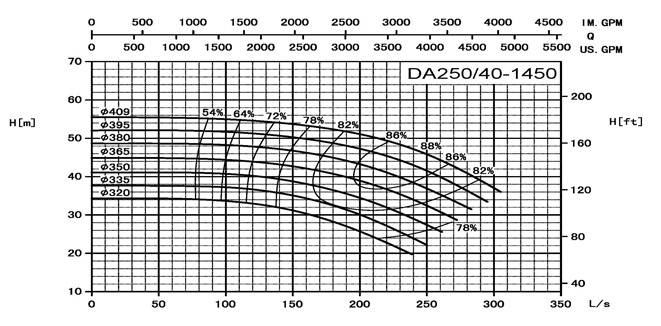

Features 1. The centrifugal pump adopts rear pull structure, there is no need to disassemble the pump during maintenance, this structure is also lightweight, so it is easy to replace the spare parts. 2. Due to the separate design for the bearing and the mechanical seal, the bearing can keep in its original position even when the mechanical seal leaks or needs replacement. This provides the bearing with an extended service life, and ensures less maintenance of the pump. 3. Our centrifugal pump can be used as self-priming pump, when it is equipped with the self-priming device, that can greatly reduce the cost and service power, speed up the self-priming time, at the same it can support dry start. 4. With high working efficiency, takes DA250/40 pump as an example, the maximum efficiency reaches 88%, that can greatly reduce the power consumption and cost, it is energy saving and environmental protection.
